TMBR-SC

Products Description

TMBR-SC Series

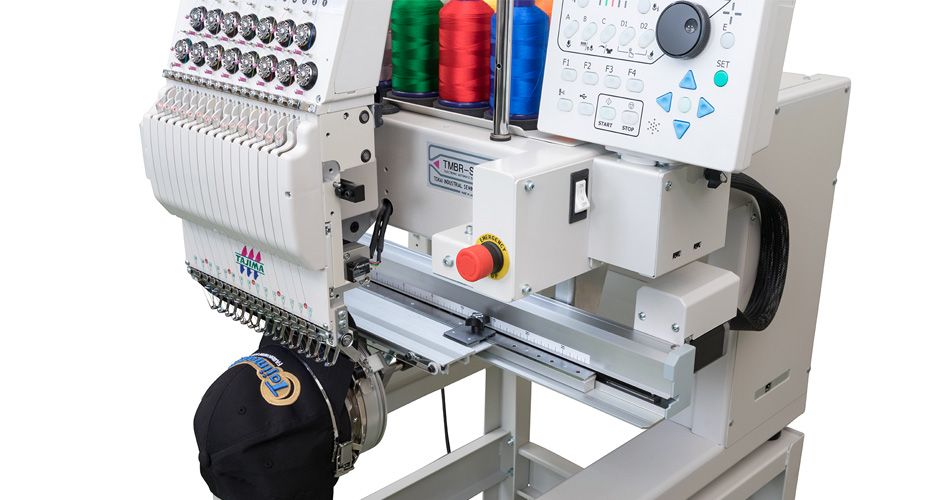

Tajima TMBR-SC series is a high-spec model equipped with Digitally Controlled Presser Foot “DCP” on TMBP-SC series. DCP is a function that stabilizes embroidery by minimizing the “fluttering” of fabrics that occur during embroidery, such as thick fabric, leather, and sewing folds. It also supports Multi Cording Device using DCP.

Features:

Incorporation of the Digitally Controlled Presser Foot (DCP) for secure fabric stability.

The DCP can reduce fabric fluttering that occurs during embroidery

It is especially effective when working thick fabric, very thin fabric, and folds of material.

What is “fluttering” ? “Fluttering occurs when the material is lifted up during embroidery which causes skipped stitches, miss-trimming, and reduced quality stitching

The DCP can be adjusted randomly according to the material thickness on the operation panel. It simplifies the mechanical process that was previously required and time consuming.

Advanced settings according to the embroidery

With Digitally Controlled Presser Foot “DCP”, the height of the presser foot can be adjusted on the operation panel according to the thickness of the fabric. the height of the presser foot can be set on embroidery design data using Tajima DG by Pulse which is recommended by Tajima. DCP is effective for leather that is difficult to embroider, delicate silk, quilted fabric, and 3D foam.

Incorporation of the FS Mode

To accommodate loosely twisted or thick thread that has been difficult to use for embroidery, we have designed the FS Mode function to provide stitch stability and improved embroidery quality. When using the FS Mode the RPM is restricted. A decresase in production can be kept to a minimun by setting the FS Mode to individual instead of all needles on the TMBR-SC

Middle Threads Guide

Easy Threading & exchange

Border Frame

Tubular Frames

Option frame: Wide Cap Frame 2

The newly-designed Slim Cylinder Bed, which has downsized diamter compare to the conventional cylinders by about 12% , has widened the range of application so as to cover tubular products, such as sleeves and pockets. The wide cap frame also has been newly designed to upgrade the rigidity coinciding with the Slim Cylinder Bed. This frame has enhanced the embroidery stability whereby increasing the rotational speed to 1000 rpm (900 rpm for +4mm).

Option device: Multi Cording Device 2

Device for sewing up to 6 colors of cord material

Various expressions are possible by combining with embroidery

Option frame :Sock Frame (50mmx30mm)


For socks, wristbands

Option :Air Type Clamp Frame 2 (80mm×120mm,
110mm×140mm, 140mm×200mm)

For patent leather bags, tote bags

The product can be easily fixed to the hoop. Increase embroidery productivity

Option frame : Air Type Pocket Frame 2 (90mm×30-256mm)

For pockets, caps or shoes Adjust the hoop size (pinch width) according to the size of the product

Option frame: M-Frame (90mm×30-256mm)

For pouches, tote bags

Option frame : X-Extenshion Unit (360mm×1200mm)

Secure a wider embroidery space by attaching a special frame and table

For large flags, store awnings, dresses, sports sweat suits, tablecloths, curtains or furniture

Popular Model

MODELNeedlesMulticolor headsEmbroidery Space (mm)A
(mm)
B
(mm)
C
(mm)
TMBR-S1501C151360 x 5001,205770997
Option : Mulit Cording Device, Sequin Device IV
Revoution : Max. 1,200 rpm
Power consumption : 160 w
Power Supply : 1-PH 220V 50Hz
