TCMX Series – Chenille embroidery machines
Integration of Tajima’s know-how and the most advanced technologies creates higher value added products.

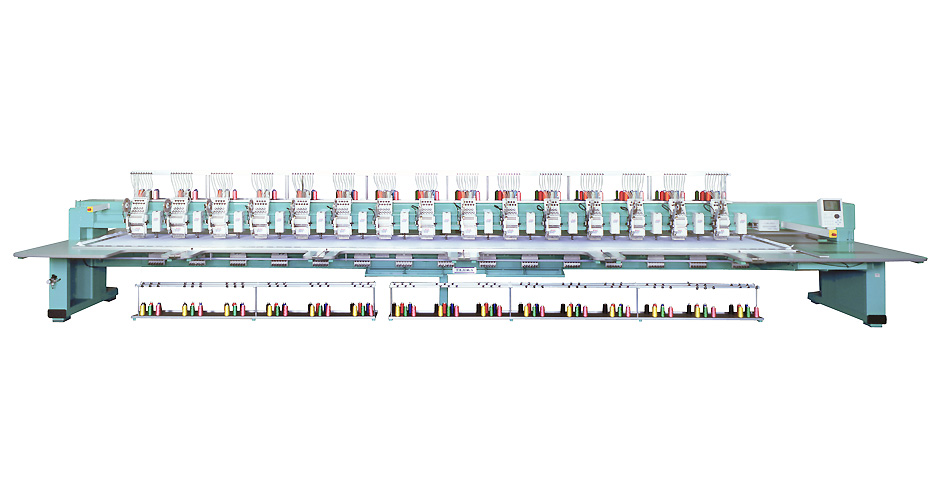

TCMX Mixed Type

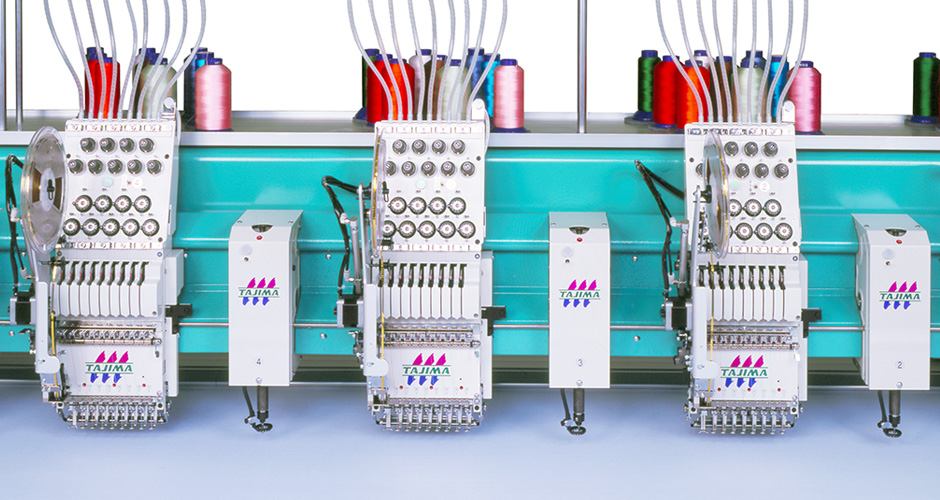

A Mixed type series to increase production efficiency and open the way to versatile embroidery expressions! Chenille embroidery and standard embroidery have been brought together in one embroidery machine. A chenille embroidery head is coupled with a standard embroidery head in a pair (available up to 15 pairs)
Features:
Chenille embroidery
High-speed operation at 750 rpm has been brought to reality
High-speed operation at 750 rpm (in comparison with our previous specification of 600 rpm) has drastically increased productivity.
Automatic change of 6 colors enables versatile multicolor arrangement.
A setting on the operation panel allows the operator to select desired colors.
Automatic lift-up mechanism
The Needle, Nipple and Presser foot are automatically lifted up for easier frame exchange operation.
Automatic needle height adjusting mechanism
Needle height is adjustable in 10 steps according to the loop height or chain size.
Tie-off function to prevent the thread from fraying
Chain stitches are automatically inserted for some stitches after completion of loop stitches for prevention of thread fraying
that causes production error.
Technologies and functions
A user-friendly color LCD operation panel
An easy-to view color LCD operation panel and special use keys are designed in a compact interface to enable operation by instinct. The job currently being embroidered on the machine is displayed on the screen inreal time 〈PAT〉.
Popular Model
| MODEL | Needles | Pairs | Multicolor head | Lock-stitch chenille heads | Head interval | Embroidery Space (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|---|---|---|
| TCMX-61202 | 6/12 | 2 | 2 | 2 | 600 | (680 x 600/275)S | 3,215 | 1,820 | 1,550 |
| TCMX-60912 | 6/9 | 12 | 12 | 12 | 480 | (680 x 480/230)S | 7,725 | 1,830 | 1,630 |
| TCMX-60912 | 6/9 | 12 | 12 | 12 | 510 | (680 x 510/230)S | 8,115 | 1,830 | 1,630 |
| TCMX-60915 | 6/9 | 15 | 15 | 15 | 480 | (680 x 480/230)S | 9,165 | 1,830 | 1,680 |
| Option | : Sequin Device ESQ-C , Sequin Device IV |
| Revolution | : Max. 1,000 rpm (Standard ), Max 750 rpm ( Chenille embroidery), Max 500 rpm (Coiling embroidery) |
| Power consumption | : 1.6 kw |
| Power Supply | : 3-PH 380V 50Hz |
