TFMX-IIC Type 2 Series
The embroidery machine that brings beauty to life.
Giving you the highest-quality embroidery machine with all of Tajima’s technologies, the only way to realize the utmost in embroidery quality
Features:
Slim Cylinder Bed
The newly designed slim cylinder bed is about 12% smaller in diameter than the conventional cylinder bed, which expands support for finished products such as sleeves and pockets.
6.5 inch Color LCD panel
Easy-to-view 6.5 inch color LCD panel and special use keys are located in a compact design to enable operation by instinct.
The job currently being embroidered on the machine is displayed on the screen in real time .
Border Frame
Allows for full field that embroidery
Memory
The standard memory is 2,000,000 stitches and able to store a Max. of 200 designs.
Design data can be input and output using USB memory.
Tubular Frames
Wide range of Tubular frame are avaialble to meet all your requirement for embroidery on T-shirts, sweat shirts or other items

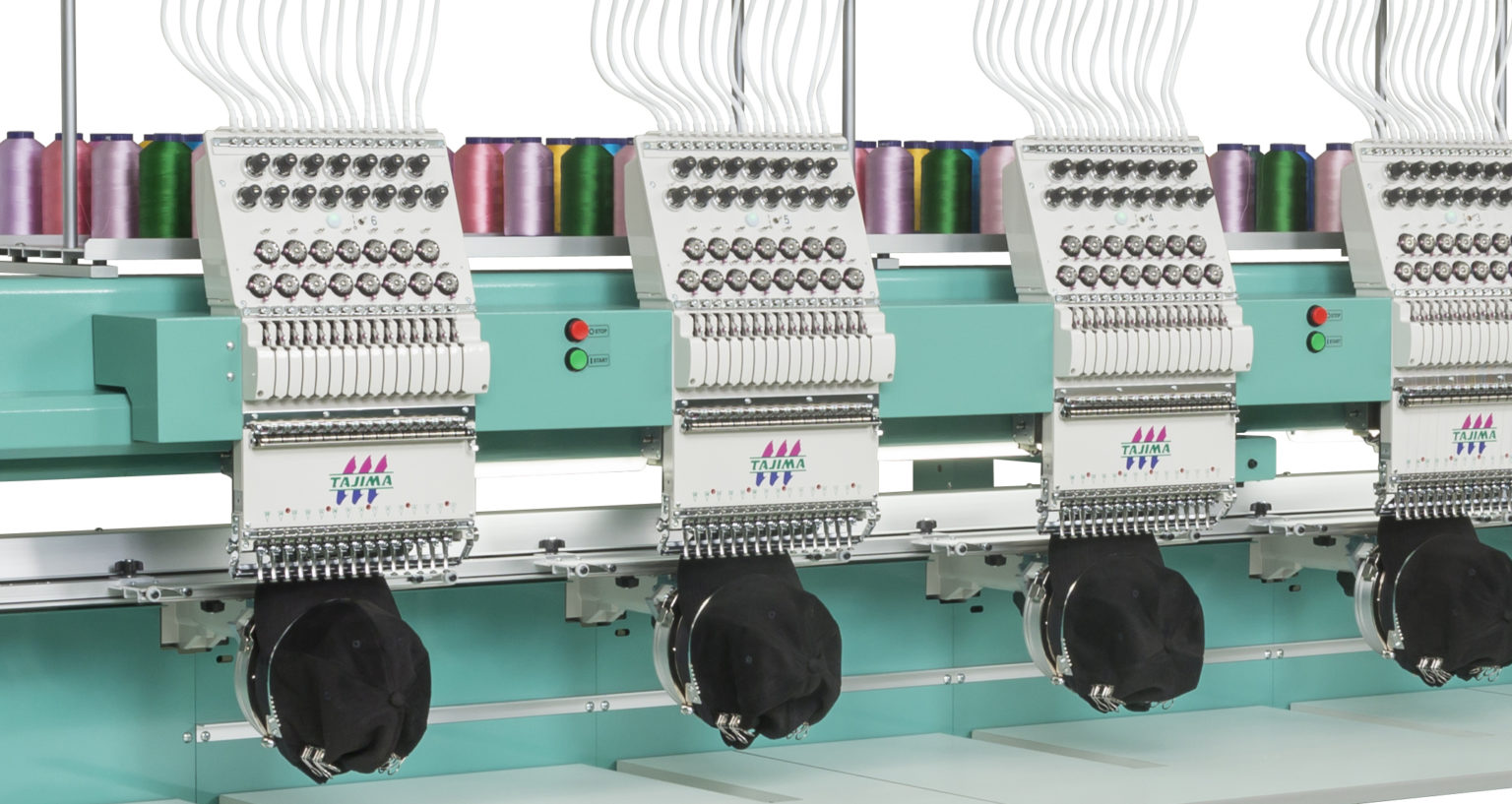

Option : Cap Frame 2
Cap frame that allows embroidery up to 360mm around the cap.
Popular Model:
| Model | Needles | Multicolor heads | Head interval | Embroidery Space (mm) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|---|
| TFMX-IIC904 | 9 | 4 | 360 | 450 x 360 | 2,150 | 1,250 | 1,705 |
| TFMX-IIC906 | 9 | 6 | 360 | 450 x 360 | 2,870 | 1,250 | 1,705 |
| TFMX-IIC908 | 9 | 8 | 360 | 450 x 360 | 3,640 | 1,250 | 1,705 |
| Option | : Sequin Device III, Sequin Device IV, Lochrose Embroidery Device, High Speed Cording device |
| Revoution | : Max. 1,000 rpm |
| Power consumption | : 310w ~ 420 w |
| Power Supply | : 1-PH 220V 50Hz |
| Motor | : AC Servo Motor x 1, Pulse Motor X 2 |
